TeraHz build guide

This document describes the process of building/installing TeraHz from the Git repository.

Warning

The recommended way of getting TeraHz is the official Raspberry Pi SD card image provided under the releases tab in the GitHub repository. Installing TeraHz from source is a time consuming and painful process, even more so if you don't know what you're doing, and whatever you end up building will not be officially supported (unless you're a core developer).

With this warning out of the way, let's begin.

Getting the latest sources

The most reliable way to get working source code is by cloning the official GitHub repository and checking out the development-stable tag. This tag marks the latest confirmed working commit. Building from the master branch is somewhat risky, and building from development branches is straight up stupid if you're not a developer.

Make sure that the repository is cloned into /home/pi/TeraHz, as Lighttpd expects to find frontend files inside this directory.

After cloning and checking out, check the documentation for module dependencies and the required version of python in the docs/dependencies.md file.

Installing Python

This step depends a lot on the platform you're using. TeraHz was developed with Raspberry Pi and Raspbian in mind. If you're familiar with Raspbian enough, you'll know that the latest version of Python available is 3.5, which is too obsolete to run TeraHz and the required modules consistently. This leaves us with compiling Python from source. This step is guaranteed to be slow, overnight compiling with something like tmux is recommended.

Pre-requirements

Installing python without most C libraries will lead to a rather minimalistic Python install, missing a lot of important modules. To prevent this, update the system packages. After that, reboot.

sudo apt update
sudo apt full-upgrade
sudo reboot

Install the required build tools, libraries and their headers.

sudo apt-get install build-essential tk-dev libncurses5-dev libncursesw5-dev \
libreadline6-dev libdb5.3-dev libgdbm-dev libsqlite3-dev libssl-dev libbz2-dev \
libexpat1-dev liblzma-dev zlib1g-dev

Compiling

Compiling Python from source is, in fact pretty easy, just time-consuming. To combat that, using tmux to detach and later reattach the session is advised.

Python is packaged in many forms, but you'll be using the most basic of them all: a gzipped tarball. Download and decompress it, then cd into its directory.

wget https://www.python.org/ftp/python/3.6.8/Python-3.6.8.tgz
tar -xzf Python-3.6.8.tgz
cd Python-3.6.8

Python's build process is pretty classic, a .configure script and a Makefile. Using the -j option with Make can reduce the compile time significantly. Go with as many threads as you have cores: -j 4 works great on the Pi 3 B/B+.

./configure
make -j4

When the compilation ends, install your freshly built version of python.

sudo make altinstall

"Altinstall" means that the new version of Python will be installed beside the existing version, and all related commands will use the full naming scheme: think python3.6 or pip3.6 instead of the shorter python3 or pip3.

Modules

Another painfully slow part is the installation of all the required modules needed by TeraHz. Luckily, pip3.6 takes care of the entire installation process. As before, using tmux is advised.

pip3.6 install smbus pyserial flask pandas

Raspi-config

For some law-obeying reason, Raspbian locks down the Wi-Fi interface card until the Wi-Fi country is set. This means that we will need to set it manually through the raspi-config program. It requires superuser privileges.

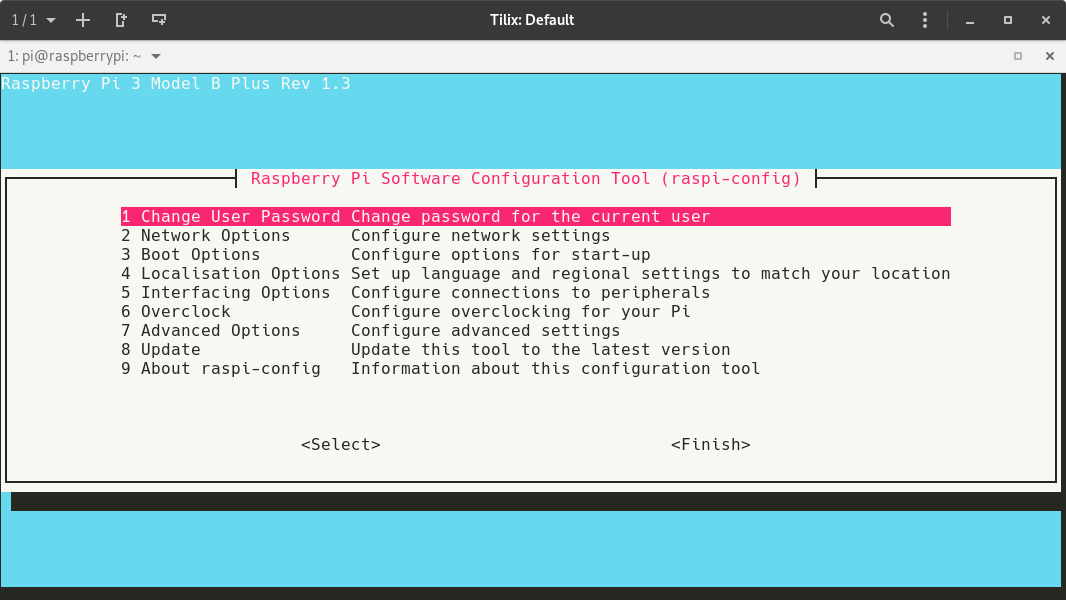

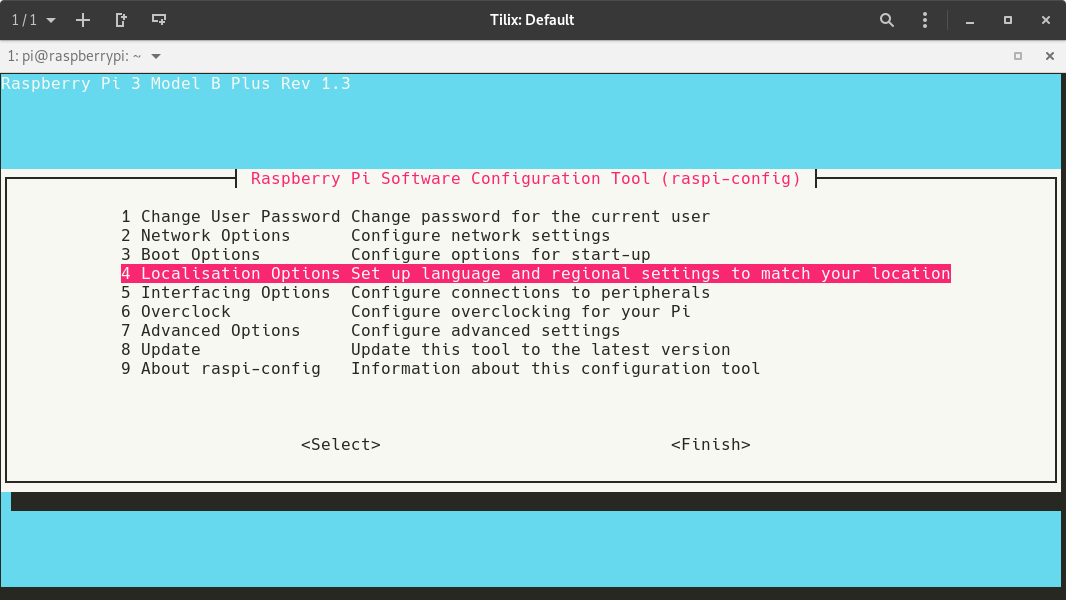

sudo raspi-config

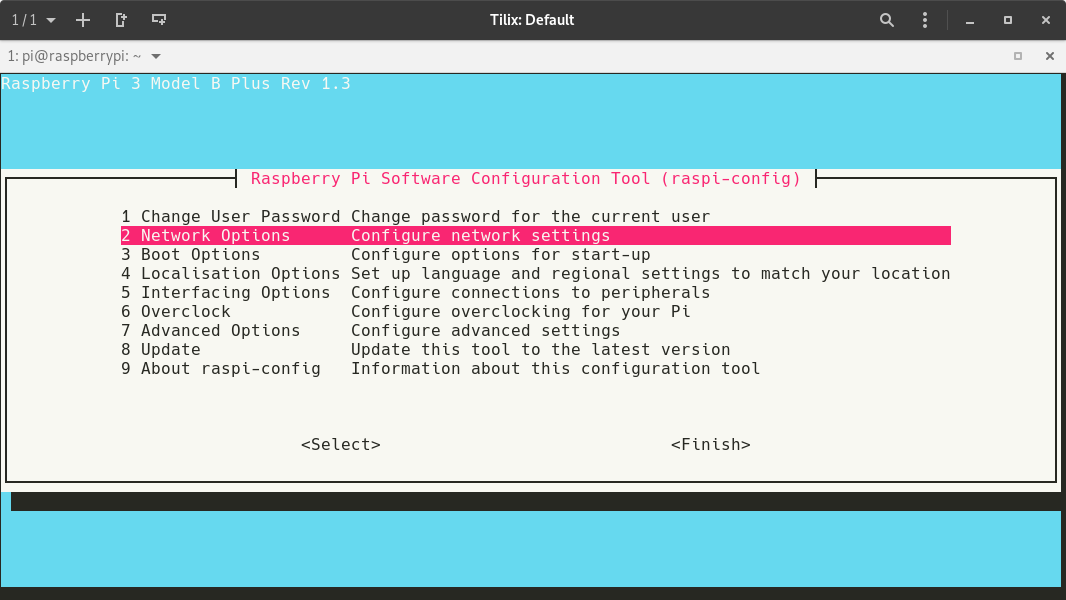

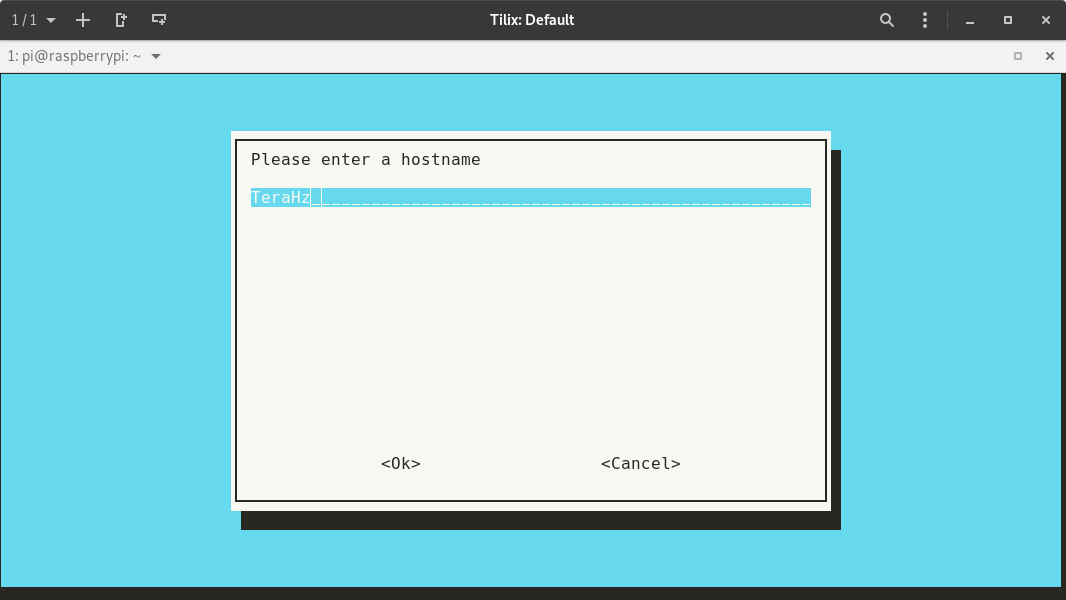

Configure the network hostname to something specific. If setting up multiple TeraHz machines, make their hostnames unique so you can tell them apart.

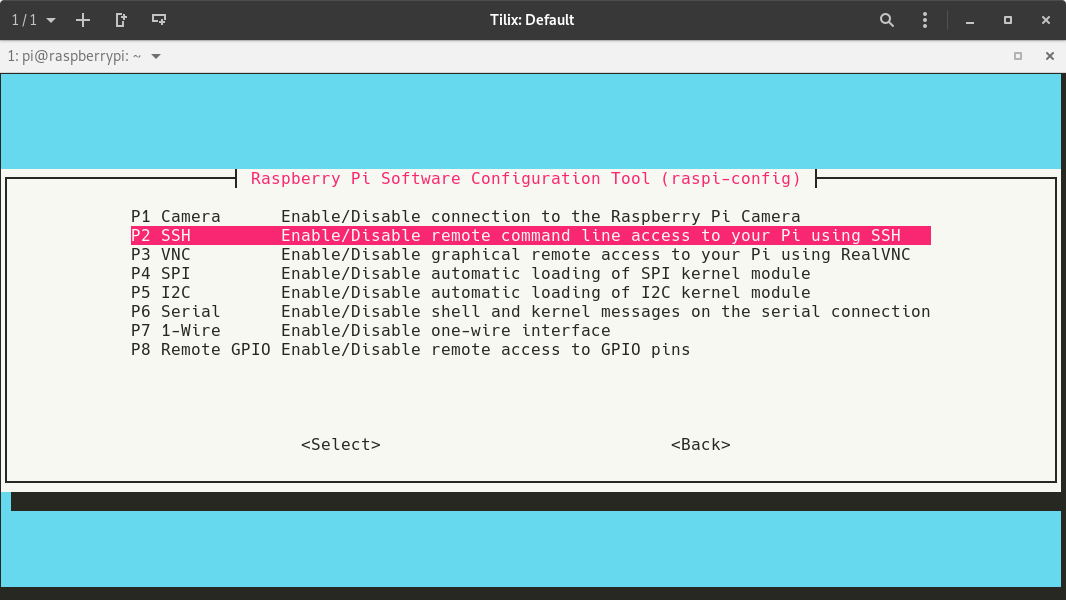

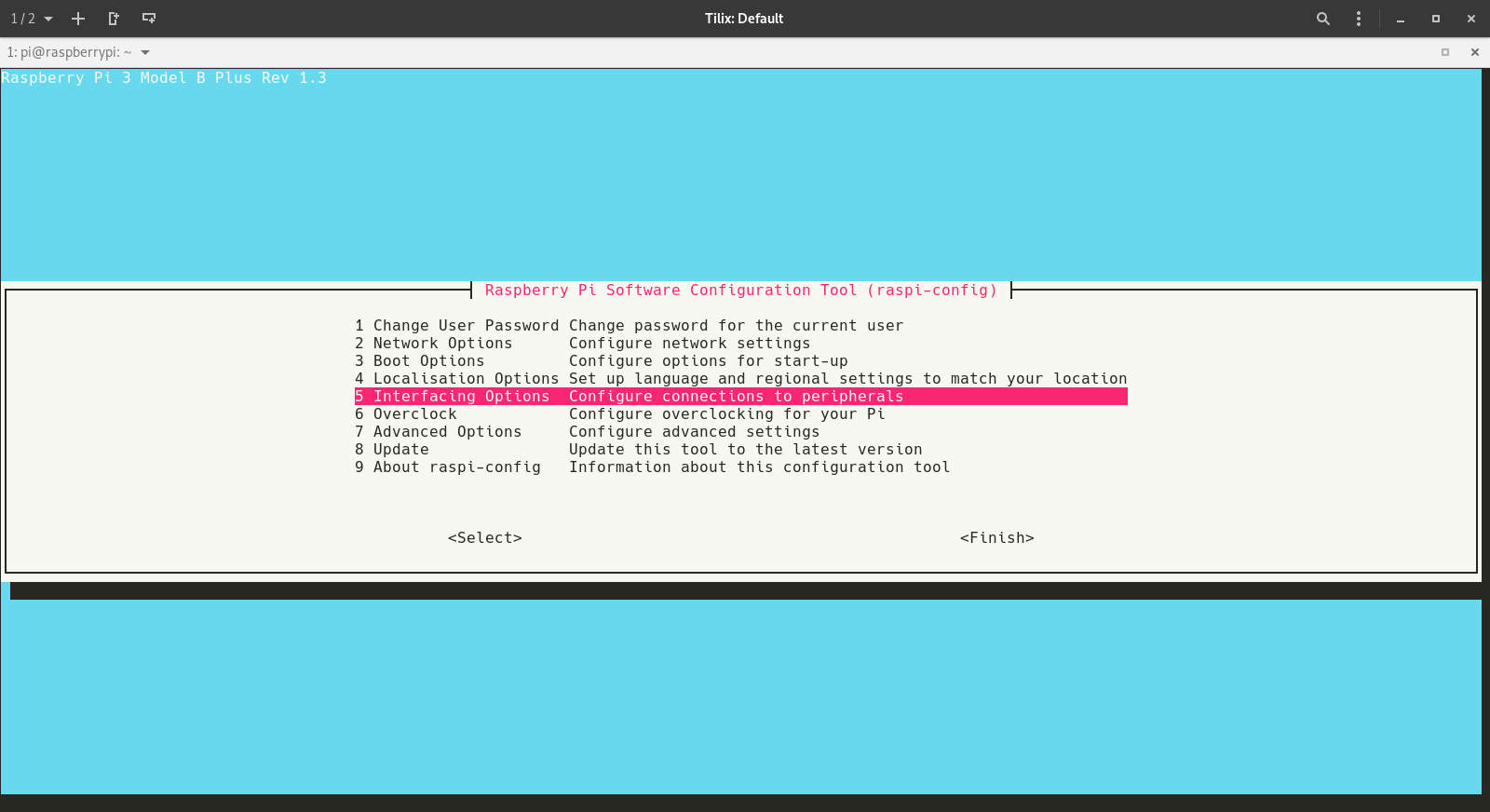

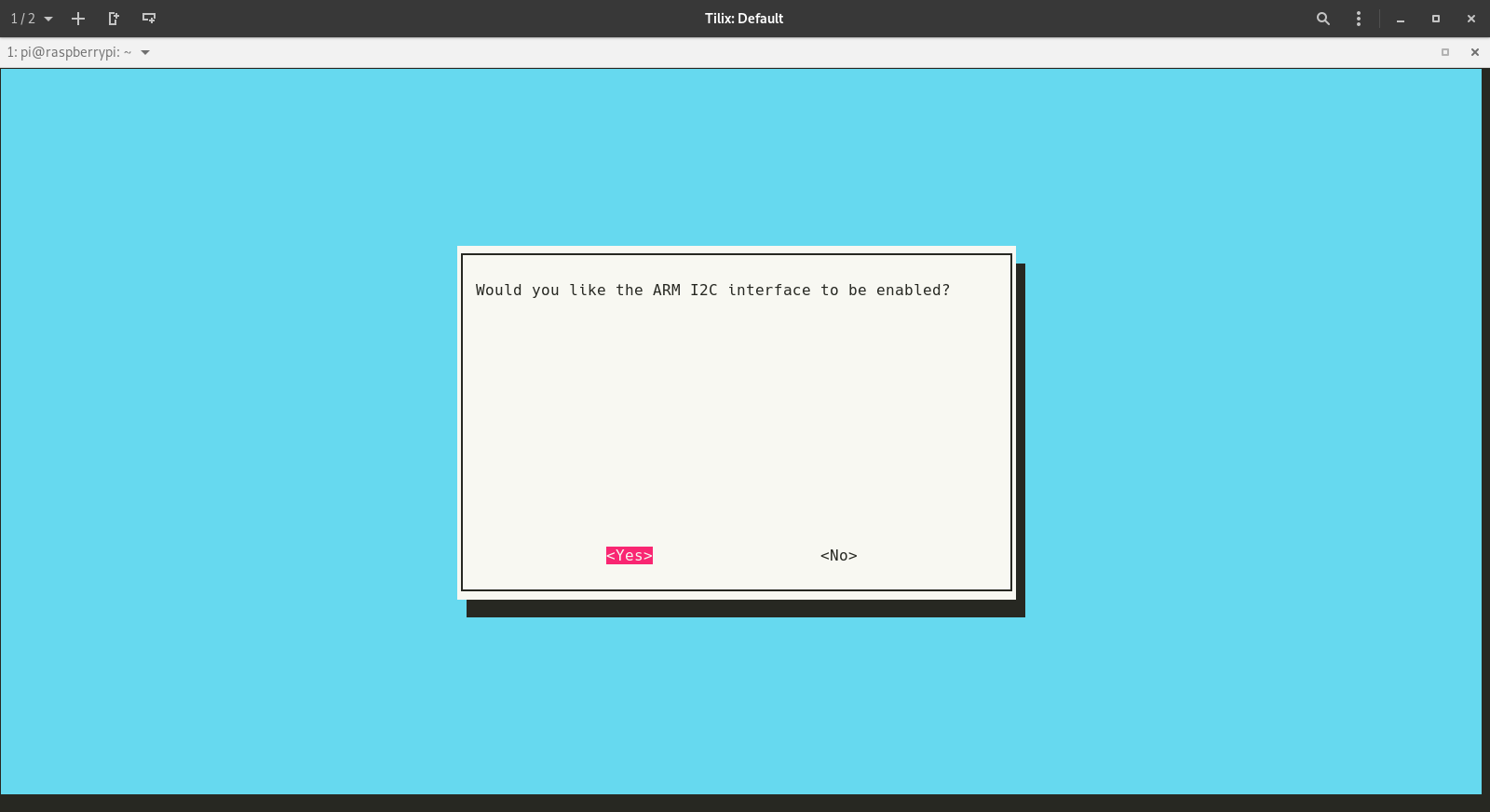

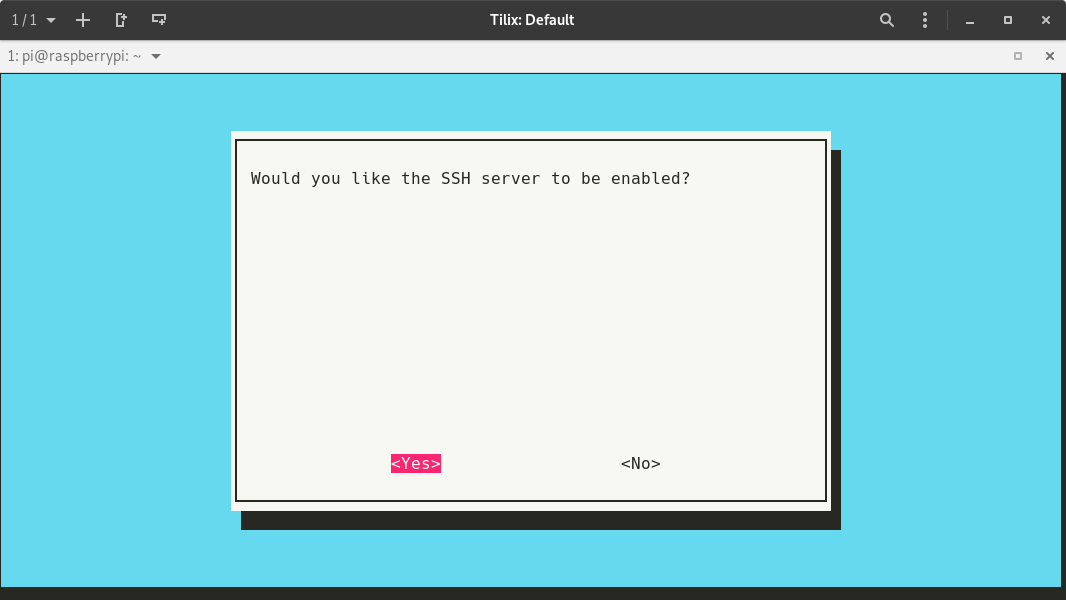

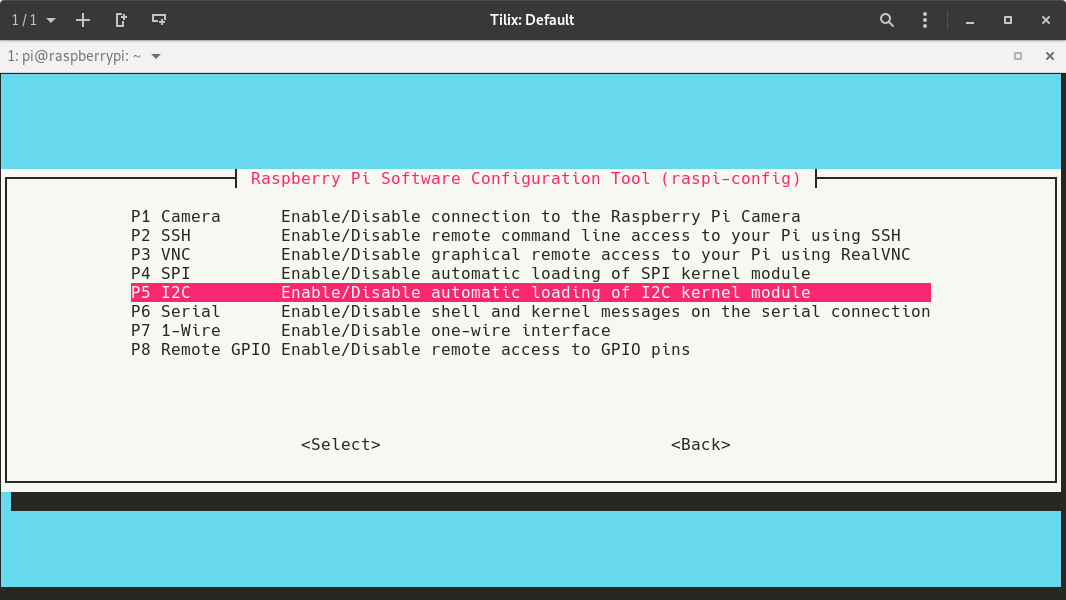

Enable SSH and I2C interfaces.

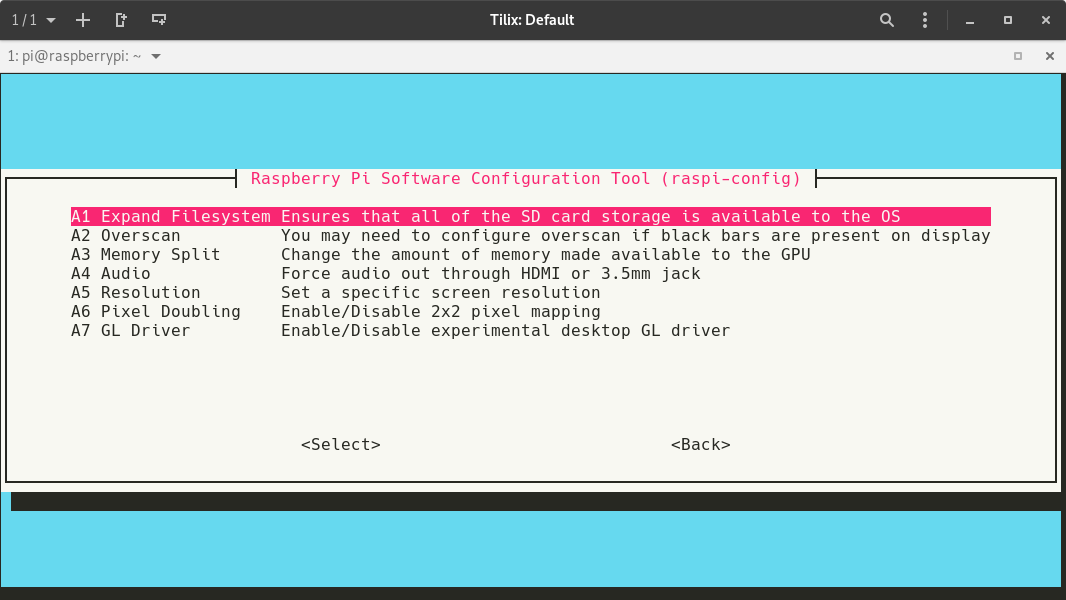

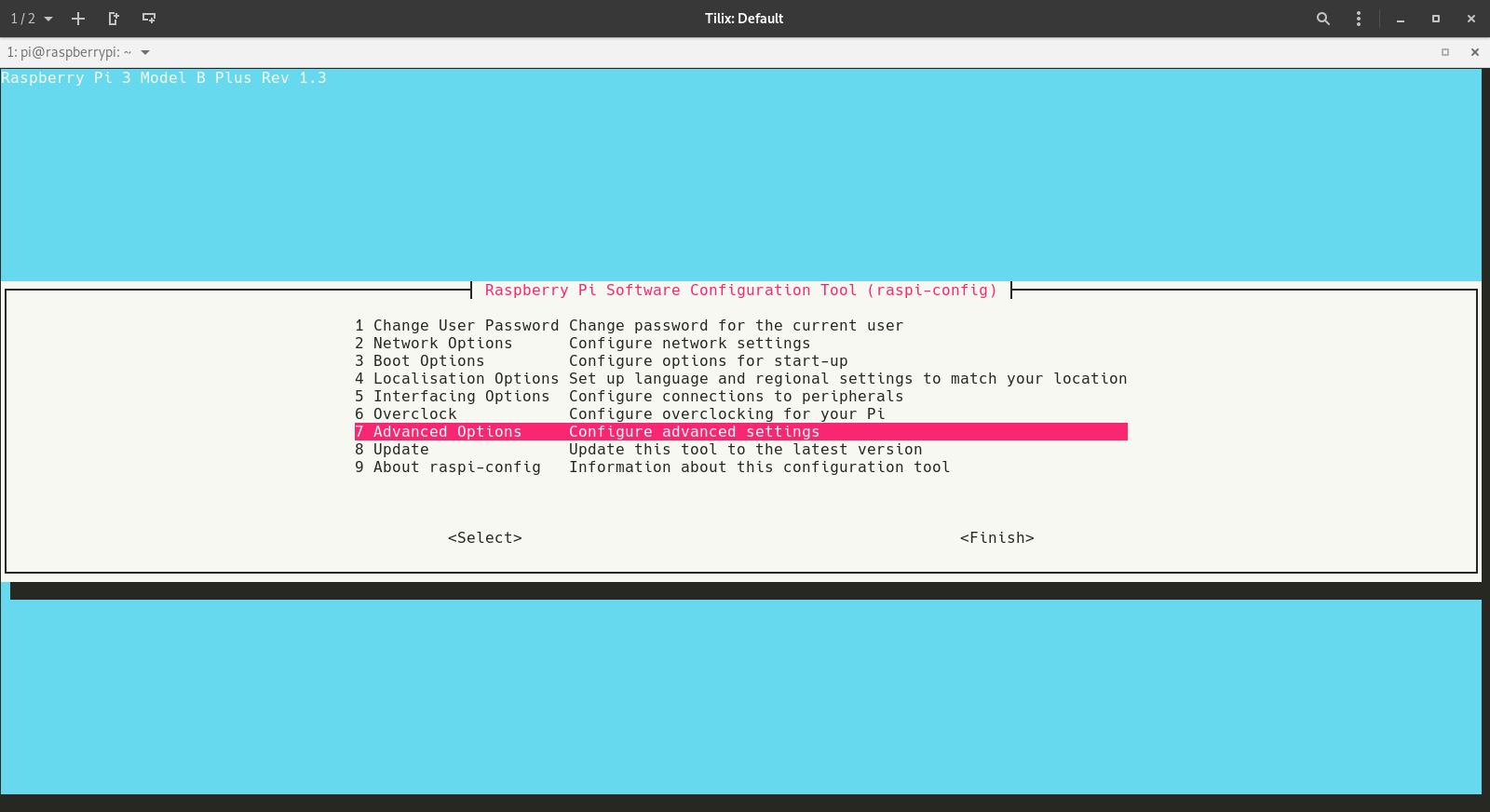

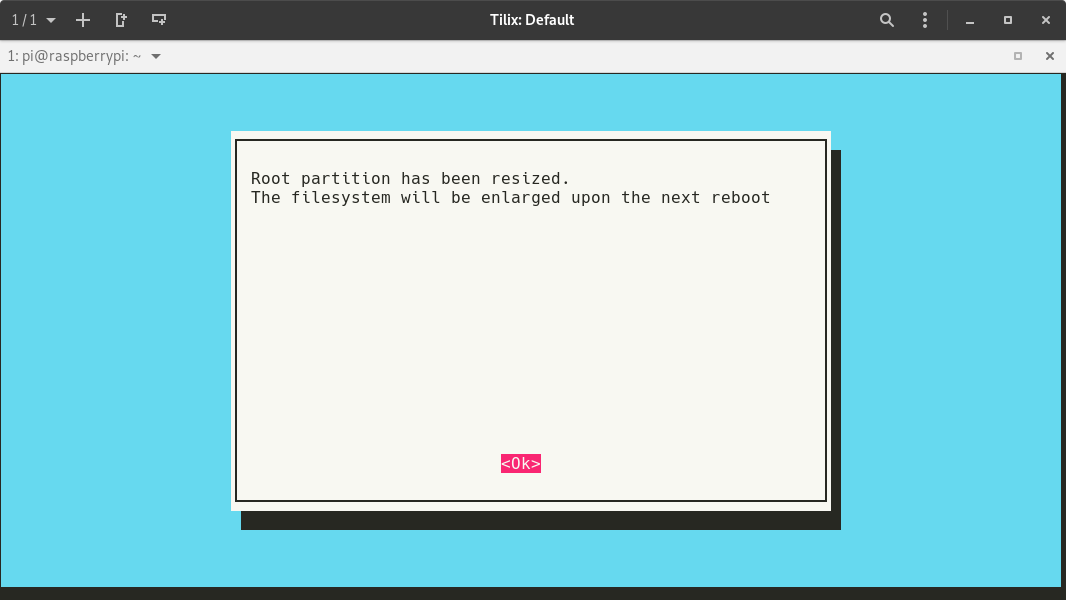

Expand the root filesystem along the entire SD card.

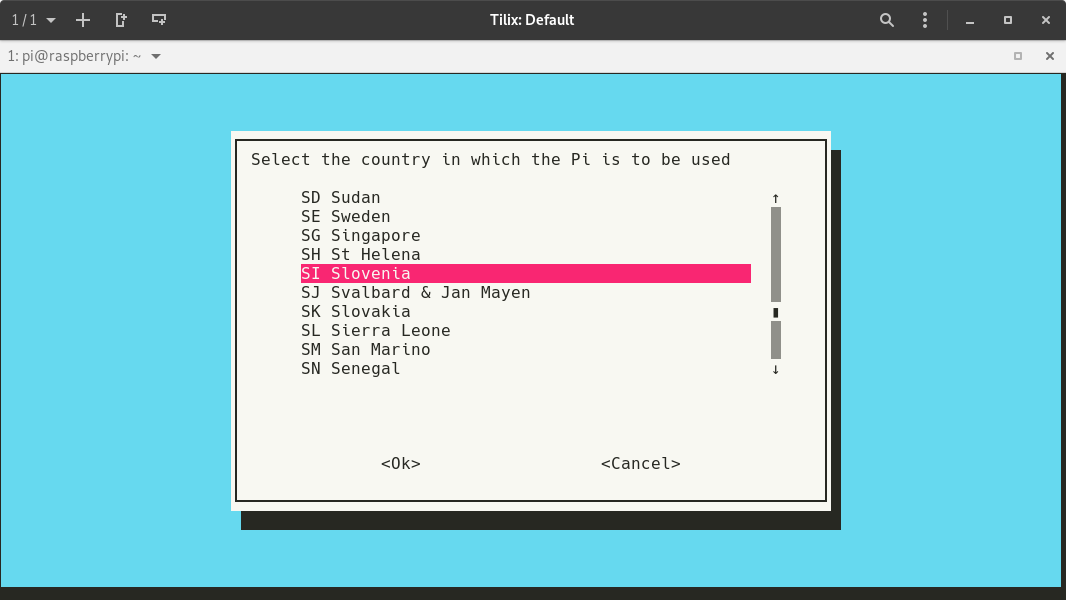

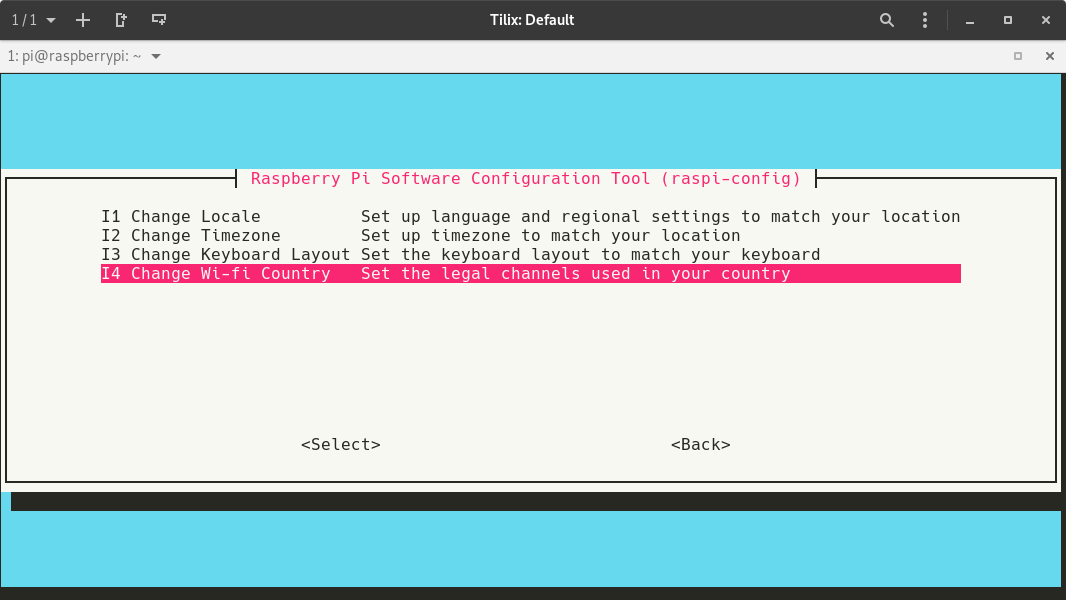

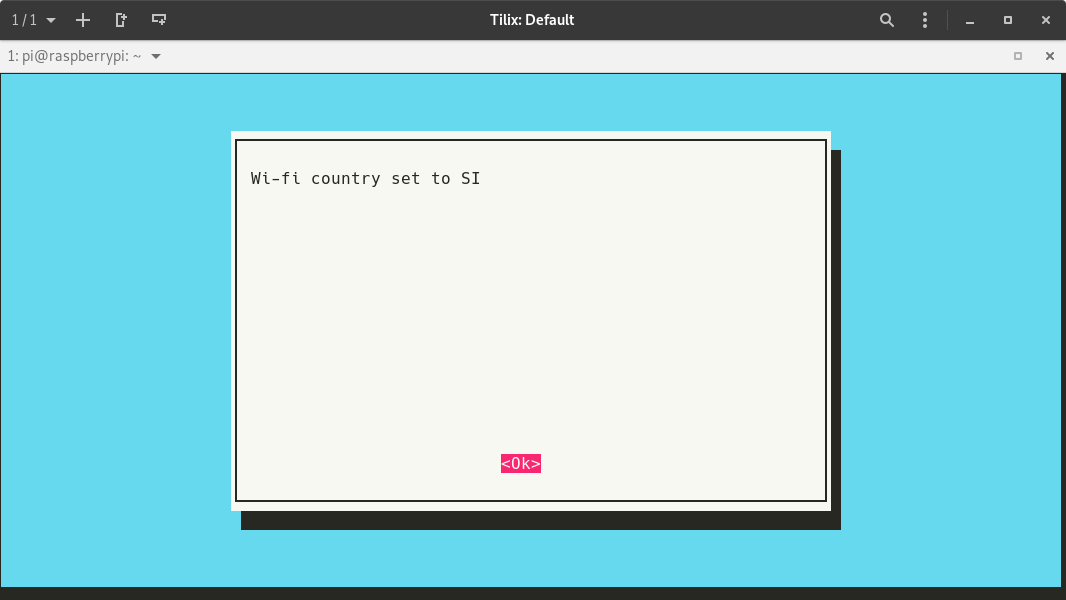

Set the Wi-Fi country to the country you'll be using TeraHz in.

Save and reboot to enable Wi-Fi

Installing packages

In addition to what's already installed, TeraHz requires the following daemons to run:

• Lighttpd - Frontend HTTP server
• Dnsmasq - DNS and DHCP server, used to redirect the terahz.site domain
• Hostapd - Wi-Fi access point

They are available from the Raspbian repository. Install it via apt.

apt install hostapd dnsmasq hostapd

Configuring daemons

By default, the daemons we installed are disabled and start only manually. To change that, enable them through systemctl. Hostapd conflicts with wpa_supplicant, the solution is to disable wpa_supplicant (this will break your wireless connections, so use wired ethernet).

sudo systemctl unmask hostapd
sudo systemctl stop wpa_supplicant
sudo systemctl disable wpa_supplicant
sudo systemctl enable dnsmasq hostapd lighttpd

Copying configuration files

To simplify the process of configuring Raspbian to run TeraHz, sample configuration file are provided in the etcs subdirectory of the Git repository.

These files have been verified to work, but it's not a brilliant idea to just copy them into your /etc directory. Use them carefully and more as a template for your own configuration rather than as a de facto way of configuring TeraHz.
